Pure Spout™ Filter Box
Pure Spout™ Filter Box
Pure Spout™ Filter Box
Pure Spout™ Filter Box

Pure Spout™ Filter Box

Regular price $250.00

Ordering more than 100 units? You may be eligible for volume-based discounts. Contact info@purespoutfilter.com for more information.

Filter Box is an affordable alternative to replacing your drinking fountain. Provide high-quality filtered water by installing Filter Box units at any potentially compromised drinking fountain. Unique shutoff valve feature restricts flow of water before filter expires.

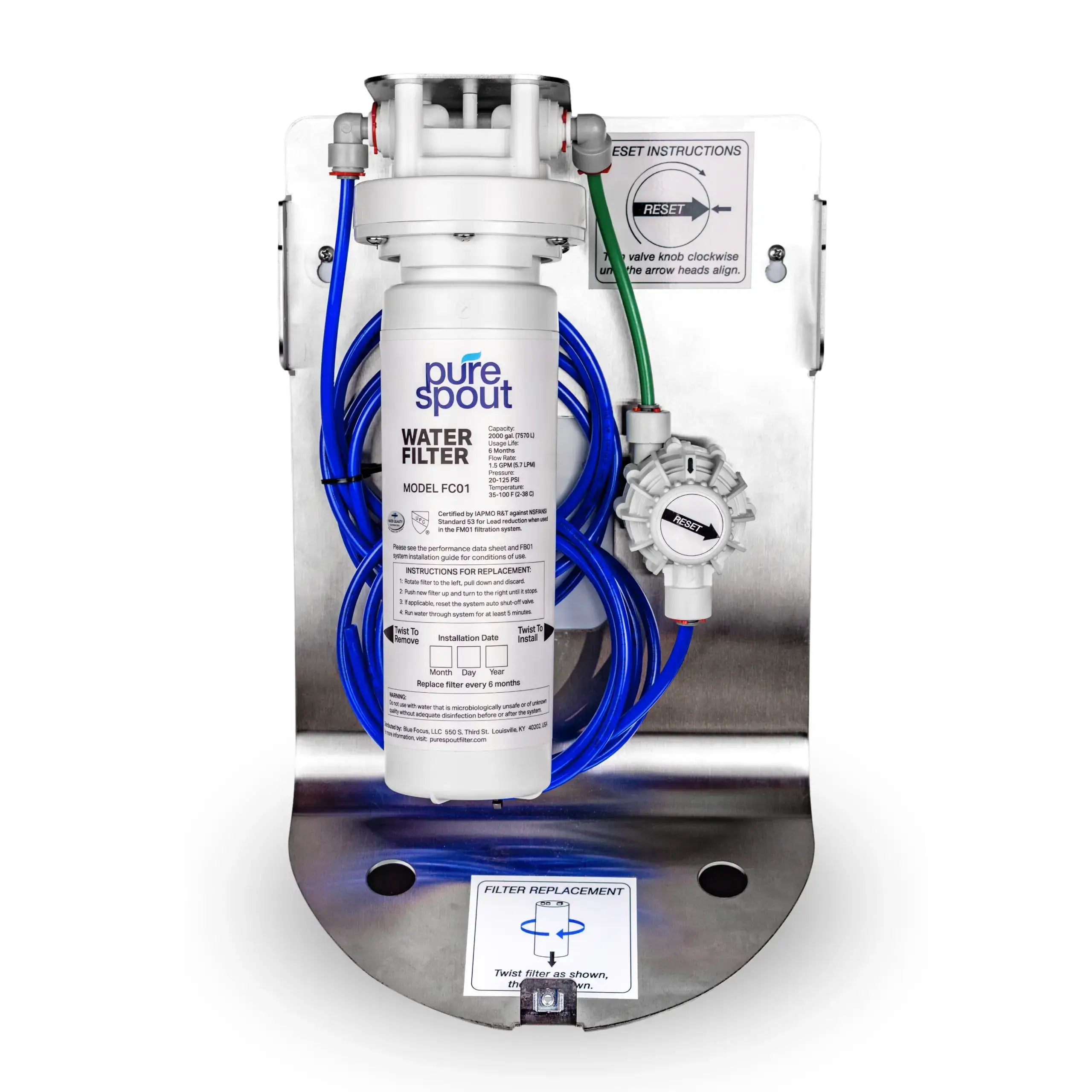

The Pure Spout™ Filter Box:

  • Install above or next to any drinking fountain where filtration is desired
  • Designed to meet the requirements of NSF/ANSI 53 for lead reduction
  • Allows for quick installation options and is low-maintenance
  • Lockable door deters tampering
  • Compatible with most fountain models
  • Shutoff valve provides extra safety mechanism

Product Includes:

  • Installation materials in kit needed for most fountain models
  • (1) 6-month filter
Install next to any drinking fountain where filtration is desired.
Unique shut-off valve restricts flow of water before filter expires.

View Warrantly Information Here

Product Specifications

  • Retrofit Filtration Enclosure (vandal-resistant)
  • Lead reduction filter with 2,000-gallon capacity
  • Automatic shutoff valve shuts off water supply at 1,800 gallons
  • Overall Dimensions: 17-3/4” x 10-5/16” x 5-7/16”
  • Stainless Steel

NSF Certifications:

NSF 372 (lead content)


Stainless Steel (enclosure), PP (cap)


18, 20


17-3/4” x 10-5/16” x  5-7/16”

Shipping Weight:

15 lbs

Shipping Dimensions:

Flow Rate:

1.5 GPM (5.7 LPM)


35-100 F (2-38 C)

Pressure Drop:

<10 PSI @ 1.5 GPM

Operating Pressure:

20-125 psi

Water Inlet:

¼” O.O. tube

Water Outlet:

¼” O.O. tube

Shutoff Valve Capacity:

1,800 gallons

Filter (included):

PureSpout Model FC01

Supply Line Protection:

72” flexible conduit

  • PureSpout Model FB01-SS is certified to NSF 372 for lead content.
  • PureSpout Model FC01: 2,000-gallon capacity filter NSF certified for reduction of lead
  • Filter should be replaced every 2,000 gallons or 6 months after installation.
  • Vandal-Resistant Enclosure: Made from 18 and 20-gauge stainless steel to protect filter.
  • Filter Box can be mounted virtually anywhere near an accessible water line.
  • Order FC01 as a replacement filter.
